In the world of modern heating systems—especially hydronic and radiant heating—circulator pumps are essential components that ensure warmth is delivered efficiently and evenly throughout a building. While boilers often take center stage in heating discussions, circulator pumps are the unsung heroes that keep hot water moving to radiators, baseboards, or underfloor piping.
Whether you’re a homeowner looking to understand your HVAC setup, or a building engineer optimizing system performance, knowing how circulator pumps work—and how to choose, install, or maintain them—can lead to better comfort, energy savings, and long-term reliability.
In this comprehensive post, we’ll explore:
- What a circulator pump is
- How it works in various heating systems
- Common types of circulator pumps
- Components and working principles
- Installation and maintenance tips
- Troubleshooting and failure signs
- Benefits of upgrading to high-efficiency models

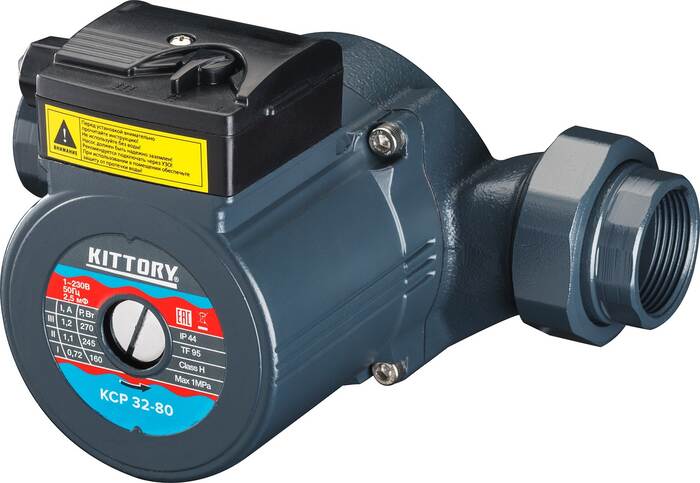

What Is a Circulator Pump?
A circulator pump (also called a hydronic pump or heating pump) is a mechanical device that moves hot water from the boiler through the heating distribution system and back again in a closed loop. It ensures continuous water flow so that heat can be transferred efficiently from the heat source to the desired space.
In a residential system, the circulator pump typically sits near the boiler and pushes hot water through pipes to radiators, baseboard heaters, or radiant floor systems. In larger buildings or commercial applications, multiple pumps may be used to manage complex zoning and heating loads.
Why Are Circulator Pumps Necessary?
Water doesn’t circulate on its own in a closed-loop heating system. Gravity alone isn’t reliable or efficient, especially in multi-story buildings or systems with long pipe runs.
Here’s why circulator pumps are crucial:
- Enable continuous flow of hot water throughout the system
- Maintain even temperatures across different zones
- Improve energy efficiency by optimizing heat distribution
- Prevent stagnation, which can lead to corrosion and poor heat transfer
- Allow zoning, where different areas can be heated independently
Without a circulator pump, hot water would quickly lose its heat before reaching distant parts of the system, resulting in uneven or inadequate heating.
How Does a Circulator Pump Work?
At its core, a circulator pump is a centrifugal pump designed for closed-loop water systems. Here’s a step-by-step breakdown of how it operates:
- Heating Begins at the Boiler
- The boiler heats water to the set temperature.
- This hot water is ready to be distributed through the system.
- The Pump Activates
- A thermostat or control panel sends a signal to start the pump.
- The motor inside the pump begins rotating the impeller.
- Water Is Pulled from the Boiler
- The spinning impeller creates centrifugal force, which pulls cooler water from the return line into the pump inlet.
- Water Is Pushed Through the System
- The impeller pushes water into the supply line and through the heating elements (radiators, baseboards, etc.).
- As water flows, it transfers heat to the room and cools down.
- Return to Boiler
- Cooler water completes the loop by returning to the boiler.
- The cycle repeats as long as heating is needed.
Because the system is closed-loop, the same volume of water circulates continuously, with minimal loss.
Key Components of a Circulator Pump
Understanding a pump’s construction helps with diagnostics and maintenance. Most circulator pumps include:
| Component | Description |
| Pump Housing | Encloses the internal parts and connects to the pipe system |
| Impeller | Rotating component that moves water by centrifugal force |
| Motor | Powers the impeller; may be single-speed or variable-speed |
| Bearing Assembly | Supports rotating parts and minimizes friction |
| Pump Flanges | Connection points to the piping system |
| Check Valve (Optional) | Prevents reverse flow in multi-pump systems |
Some pumps also include integrated air vents or temperature sensors for added control.
Types of Circulator Pumps
Circulator pumps can be categorized in several ways, depending on speed, control method, and application:
- Single-Speed Pumps
- Run at one fixed speed
- Simple and reliable
- Suitable for small or consistent-load systems
- Less efficient in systems with variable demand
- Three-Speed Pumps
- Offer manual selection of three flow rates
- More flexible than single-speed models
- Often used in residential zoning systems
- Variable-Speed (ECM) Pumps
- Electronically Commutated Motors (ECM) adjust speed based on system demand
- Highly energy-efficient
- Ideal for modern smart systems and zoning control
- More expensive upfront but offer long-term savings
- Zone Pumps vs. Zone Valves
- Some systems use one pump per zone
- Others use a single pump with zone valves
- Pump-per-zone offers more control and redundancy, but is costlier
Applications in Different Heating Systems
🏡 Residential Hydronic Systems
- Radiator-based or baseboard heating
- Typically use one or two circulator pumps
- May use zoning for bedrooms, living areas, etc.
🏢 Commercial Buildings
- Larger systems with multiple zones, often controlled by building automation systems (BAS)
- Multiple pumps for redundancy and load balancing
🌡️ Radiant Floor Heating
- Uses circulator pumps to deliver warm water through tubing embedded in floors
- Requires continuous, evenly distributed flow for comfort
🚿 Indirect Water Heaters
- A circulator pump moves water between a boiler and an indirect tank to heat domestic hot water
Installation Tips
- Pump Placement
- Ideally installed on the return line, pumping away from the expansion tank
- Helps maintain proper system pressure and avoid air binding
- Isolation Valves
- Install isolation valves on both sides of the pump for easy servicing
- Correct Rotation Direction
- Ensure the motor spins in the correct direction (usually marked with an arrow)
- Use Proper Gaskets
- Always replace flange gaskets to prevent leaks
- Wire Controls Properly
- Connect to thermostat and boiler controller as needed
Maintenance and Longevity
Circulator pumps are durable, but regular maintenance helps prevent costly breakdowns.
Maintenance Tips:
- Check for leaks at flanges or housing
- Listen for unusual noises (whining or grinding may indicate bearing failure)
- Ensure proper voltage to the motor
- Bleed air from the system after installation or servicing
- Flush debris if system water is dirty (can clog or wear down the pump)
Signs of a Failing Circulator Pump
Like any mechanical component, circulator pumps can fail. Here are common signs of trouble:
| Symptom | Possible Cause |
| No heat in one or more zones | Pump not running, failed motor |
| Strange noises (buzzing, grinding) | Worn bearings, trapped air |
| Pump is hot but no flow | Stuck impeller or failed check valve |
| Water leaks around pump | Gasket failure or cracked housing |
| High energy bills | Oversized or failing pump running inefficiently |
Upgrading to a High-Efficiency Circulator Pump
With energy costs rising and regulations becoming stricter, upgrading to an ECM-based variable-speed circulator can pay off in multiple ways:
Benefits:
- Energy savings up to 85% compared to standard motors
- Adaptive flow control adjusts to actual system demand
- Quieter operation
- Reduced wear and tear
- Smart integration with thermostats and home automation systems
Top Brands:
- Grundfos (e.g., Alpha2, Alpha3)
- Taco (e.g., 007e, VR1816)
- Bell & Gossett (e.g., ecocirc)
While these pumps are more expensive upfront, they often pay for themselves in energy savings within a few years.
Frequently Asked Questions
❓ Can I run a heating system without a circulator pump?
Only gravity-fed systems (rare and outdated) can operate without a pump. Most modern systems require a circulator pump.
❓ How long do circulator pumps last?
Typically 10–15 years, depending on usage, water quality, and maintenance.
❓ Can I install a circulator pump myself?
If you’re mechanically inclined and follow safety procedures, it’s possible. However, incorrect installation can lead to system failure. Professional installation is recommended.
❓ Why are my radiators cold even though the boiler is working?
Your circulator pump may be stuck, malfunctioning, or airlocked. Check for motor operation and bleed the system.
Conclusion: Circulator Pumps Keep the Heat Flowing
A circulator pump is more than just a mechanical accessory—it’s the driving force behind efficient, even, and responsive heating. Whether you’re installing a new heating system, upgrading an old one, or troubleshooting cold spots in your home, understanding how circulator pumps work can make all the difference.
Investing in the right pump, maintaining it regularly, and staying alert to signs of failure can help ensure reliable comfort and lower energy costs for years to come.
